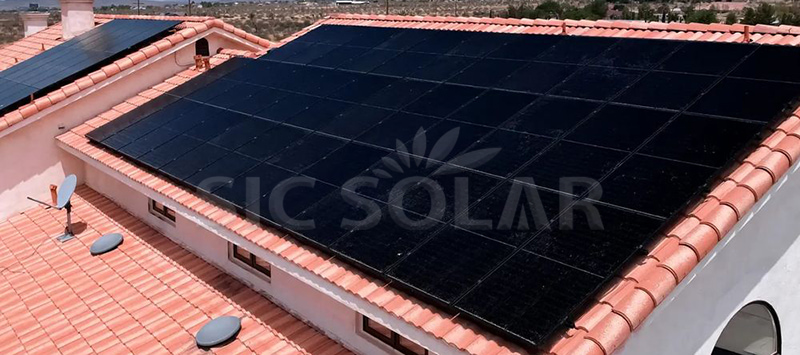

Putting solar panels on a tile roof is a common move for folks and businesses wanting to use solar power but still keep their building looking good. Tile roofs—made of concrete, clay, or ceramic—need a special way to make sure the solar panel setup is safe, tough, and keeps water out. Knowing how to put solar panels on tile roofs right can stop problems like leaks, roof damage, or panels not being where they should be.

Step 1: Check the Roof

Before you start, you gotta see if the roof is in good shape. Tile roofs are often more breakable than other kinds, mostly when they're old. See if there are any tiles that are broken, loose, or wrecked. You might need to switch them out before going on. Also, think about how old the roof is and be sure it can hold the weight of the solar panels and the stuff that holds them up.

Step 2: Pick the Right Stuff to Hold the Panels

When you're putting solar panels on a tile roof, the system has to stick to the roof good without messing up the tiles. There are two main ways to do this: drilling into the roof and not drilling.

Drilling: This means making holes through the tiles and into the wood under the roof to stick the brackets that hold the panels. Special hooks are used to keep it all in place. Even though this way makes little holes in the tiles, doing it right can stop leaks and keep everything safe.

Not Drilling: This uses heavy stuff to hold the panels down without making any holes. The heavy stuff, like concrete blocks, keeps the system from moving. This is usually for flat tile roofs and doesn't change the roof at all.

For tile roofs, drilling is often the better bet because it makes sure the panels are really stuck to the roof.

Step 3: Put in the Hooks and Rails

If you're drilling, the hooks go onto the wood under the tiles. These hooks are where the solar panel rails will sit. Here's how to do it:

Take Off Tiles: Carefully take off the tiles where the hooks will go. You might have to pry them off, starting at the top and going down. Try not to break the tiles so you can put them back later.

Put in Hooks: Put the hooks on the wood under the tiles. Once they're there, screw them in tight. Use stuff that won't rust, like stainless steel.

Put Tiles Back: After the hooks are in, put the tiles back over them. Make sure they fit right so the roof still keeps water out.

Put on Rails: Now you can put on the rails that the solar panels will sit on. Stick them to the hooks and make sure they're tight.

Step 4: Put on the Solar Panels

With the rails on, it's time for the panels. Put the panels on the rails and line them up right. Use clamps to hold the panels to the rails. Tighten them enough so they don't move but not so much that you break anything.

Space the panels out so air can flow and the system works well. Put the panels in rows, following the way the roof slants, to get the most sunlight.

Step 5: Check for Leaks

One big worry when putting solar panels on a tile roof is keeping water out. Any holes you made, like for the hooks, have to be sealed up good to stop leaks. Use good sealant to seal around the holes so water can't get into the roof. Also, look where the tiles meet the hooks to be sure it's all watertight.

Step 6: Wiring

Once the panels are on tight, wire them up. This means hooking the solar panels to the inverter and then to the power grid or a battery. It's best to get a pro electrician to do this because it needs special knowledge.

Step 7: Check It All

After it's done, check everything to be sure it's all tight, sealed, and works right. Test the system to see if it's making power and running good.

Picking the Right Supplier

Getting a good system to hold the panels is key. A reputable manufacturer, like SIC Solar, provides durable and reliable solar mounting solutions for tile roofs.If you use good stuff and get it put in right, solar panels can sit safe on tile roofs and make power for years.

Putting solar panels on a tile roof takes planning and doing things just right. If you do it the right way, it can give you clean power and keep your roof looking good.
